1	Role Based Access Control Peter Edwards
2	Contents 1. Requirement and Solution 2. Authentication and Authorisation Definitions 3. Authentication Process 4. Authentication Example 5. Authentication Session 6. More Authentication Session Examples 7. Authorisation Types 8. Article On Simple Authorisation 9. Simple Authorisation in Catalyst 10. CPAN Lattice-Based Access Control Example 14. Role Based Access Control 14.1. Academic Papers 14.2. Emerging Standards and Implementations 14.3. Existing Security Implementations 14.4. Perl Implementations 14.5. RBAC Design 14.6. RBAC Example 15. Further Information
3	Requirement Controlling user access to applications and the data within them
4	Authentication and Authorisation Definitions Authentication is the validation of a userid that is used by a user or batch process Authorisation is checking that a userid is allowed to perform certain operations on an object can <user> "fred" do <operation> "delete" on <object> "/home/fred/somefile.txt" of <object_type> "file"
5	Authentication Process user/batch process requests access for <userid> using <credential> from a server server validates credential (e.g. password or key challenge certificate) against userid and returns an <authentication_token> (e.g. a cookie or hash token) which is linked server side to the userid, typically in a session store user/batch process supplies the authentication token along with subsequent requests to the server on receiving a request the server validates the authentication token checks the linked userid has authorisation to perform the given request
6	Authentication Example use Authen::Simple::Passwd; my $passwd = Authen::Simple::Passwd ->new(path => '/etc/passwd'); if ( $passwd->authenticate( $username, $password ) ) { # successfull authentication }
7	Authentication Session Once authenticated, you'll need a session to persist that, otherwise you'd need to ask for the userid/password every time Using Authen::Simple with Apache gives us an implicit session
8	More Auth Session Examples These modules on CPAN give examples of how to authenticate and have that persisted in an authentication session CGI::Application::Plugin::Authentication CGI::Application::Plugin::Session Catalyst::Manual::Tutorial::Authentication Catalyst::Plugin::Authentication Catalyst::Plugin::Authorization::Roles
9	Authorisation Types / 1 simple authenticated user has full access to system auth'd user has roles which each grant full access to a sub-system, either as a process ('can register new users') or data ('can amend customer records') the role acts effectively as a grouping mechanism Lattice-Based Access Control (LBAC) users (subjects) mapped to objects (resources, computers, applications) Role-Based Access Control (RBAC) users have hierarchical roles which have permissions that grant operations e.g. user "fred" has role "sysadmin" which has permission "security_edit" which grants operations "read" and "write" on security objects instead user "fred" might have role "root" which inherits from role "sysadmin" those permissions RBAC with Access Control List extension users have roles which have permissions with a precedence that grant operations on matched objects e.g. user "jo" has role "editor" which has permission "food_recipes" which grants operations "read", "write", "delete" to objects "of type 'document' with file path matching '/home/recipes/*'“ enterprise framework, e.g. PERMIS storing permissions via OpenLDAP and authenticating against Windows ADS BBC SSO or Shibboleth complex
10	Authorisation Types / 2 The user-role assignment may be inherent in the authorisation system,or might be read externally, say from an ADS server via LDAP The object matching might involve callouts to more sophisticated checking code plugins that query other systems Authorisation is usually applied at application level to check actions It can also be applied at database level to filter all access to data the user is allowedto see, either by a database view or by using a relational database object wrapper layerto provide an additional safety net, e.g. DBIx::Class::Schema::RestrictWithObject
11	Article On Simple Authorisation "Elements of Access Control" at perl.com by Vladi Belperchinov-Shabanski, Feb 13 2008 http://www.perl.com/pub/a/2008/02/13/elements-of-access-control.html Some nice examples of reading users and groups from file or database Policy configuration syntax Policy parser User group storage and mapping User group loading Policy match function Data fences I won't go through it now but worth reading on-line
12	Simple Authorisation in Catalyst user <-many--many-> role role has meaning in your application code Catalyst::Plugin::Authorization::Roles
13	CPAN Lattice-Based Access Control Example WE::Util::Permissions Uses a single file of permission rules queried via a Perl interface User or group matches rules which link operations to matched objects In the terminology of the author, operations are "processes", objects are "pages“ Part of a wider web file editing framework I wrote a very similar authorisation handler in C for the Open University many years ago although Perl's obviously much better at tokenising text files and handling data!
14	WE::Utils::Permissions File Format Based on these tokens user list of users group list of groups process operation like “delete” Page file path or regexp or glob
15	WE::U::P File Examples / 1 Use globbing for matching and allow the "admin" group to have rights for all processes. There is no page restriction, so the rights are valid for all objects
16	WE::U::P File Examples / 2 The members of the group "news" are allowed to do the following operations in all objects below "/News/":"edit", "change-folder", "new-doc", "rm-doc", "release" and "publish".A regular expression match is used here (there is no "! match" directive).
17	WE::U::P Querying
18	WE::U::P Caveats You have to provide user and group handling ("The semantics of users, groups, processes and pages are usually defined in another layer") No admin interface to create rules "There is currently no way to specify a token with spaces or slashes.” “Diagnostics is poor. Unrecognized tokens won't cause errors or warnings.” No precedence other than rule order (e.g. how do I deny a tree except for a sub-tree which is allowed). No plugin methods matching/precedence caclulation. But you could use the ideas and code as a basis for your own authorisation library.Have a look at the code on CPAN.
19	Role Based Access Control This is an evolving area and it is surprising how recently the standards for it have been written (2001 on) NIST "Role Based Access Control (RBAC) and Role Based Security “The NIST Model for Role-Based Access Control: Towards A Unified Standard” Proposed NIST Standard for Role-Based Access Control ACM Transactions on Information and System Security, Vol. 4, No. 3, August 2001 by D.F.Ferraiolo et al. "Beyond Roles: A Practical Approach to Enterprise User Provisioning"
20	Emerging Standards and Implementations An evolving area. Surprising how recently the standards for it have been written (2001 on) XACML http://en.wikipedia.org/wiki/XACML "OASIS eXtensible Access Control Markup Language (XACML) TC“ “Core and hierarchical role based access control (RBAC) profile of XACML v2.0” Sun's XACML Open Source impl. in Java http://sunxacml.sourceforge.net Axis2 web service for Apache Maven http://xacmllight.sourceforge.net/ C/Java providing SOAP stack Still a moving target!
21	Existing Security Implementations / 1 Windows ADS Using an LDAP connector to authenticate users and determine group memberships and permissions, such as Perl-LDAP http://ldap.perl.org/ Requires application-side logic to interpret permissions OpenLDAP "LDAP for Security, Part I“ http://www.linuxjournal.com/article/6789 Paranoid Penguin "Authenticate with LDAP, Part III“ http://www.linuxjournal.com/article/6936
22	Existing Security Implementations / 2 PERMIS Privilege Management Infrastructure Enterprise-wide, huge, complex http://sec.cs.kent.ac.uk/permis/ http://www.openpermis.org/download.htm PERMIS PMI Architecture "Implementing Role Based Access Controls Using X.509 Attribute Certificates” "RBAC POLICIES IN XML FOR X.509 BASED PRIVILEGE MANAGEMENT"
23	Existing Security Implementations / 3 Shibboleth A standards based, open source software package for web single sign-on across or within organizational boundaries that can work with PERMIS http://shibboleth.internet2.edu/ Distributed Access Control System (DACS) http://dacs.dss.ca/faq.html Written in C, well-designed, modular Provides authentication and authorisation Doesn't work on Apache 1, which the BBC uses in production :-(
24	Existing Security Implementations / 4 "A Role-Based Access Control (RBAC) system for PHP“ by Tony Marston http://www.tonymarston.net/php-mysql/role-based-access-control.html small, well-designed, good for standalone applications "Fine Grained Role Based Access Control (RBAC) system" for PHP reasonable database design and PHP code POSIX ACL – ACLs from Python http://pylibacl.sourceforge.net/ Linux kernel extension "grsecurity“ http://www.grsecurity.net/index.php Unix-based kernel level RBAC, really aimed at Unix files and users
25	Perl Implementations of RBAC I know of no solutions in Perl although there are libraries for Python, Ruby, Java. In principle you could wrap one of them We needed one at the BBC so I wrote one called IFL::Authz and hope to release it to CPAN Based on Ferraiolo et al. "Proposed NIST Standard for Role-Based Access Control" This paper has a Functional Specification of an API written in the Z formal language which I adapted to Perl. Z is nice match for the mathematical set theory underlying RBAC though there are some errors in the paper.

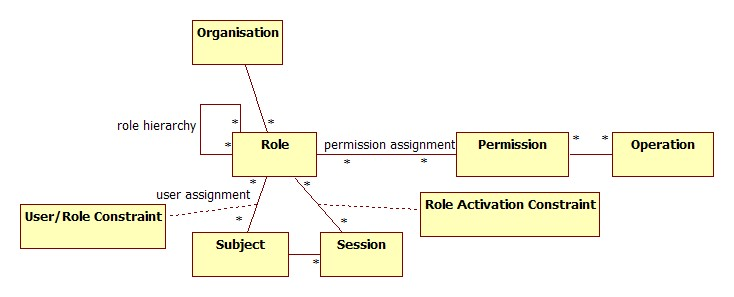

26	RBAC Model From Ferraiolo http://csrc.nist.gov/rbac/rbacSTD-ACM.pdf
27	RBAC Model Detail When defining an RBAC model, the following conventions are useful: S = Subject = A person or automated agent R = Role = Job function or title which defines an authority level P = Permissions = An approval of a mode of access to a resource SE = Session = A mapping involving S, R and/or P SA = Subject Assignment PA = Permission Assignment RH = Partially ordered role Hierarchy. RH can also be written: ≥ A subject can have multiple roles. A role can have multiple subjects. A role can have many permissions. A permission can be assigned to many roles. A constraint places a restrictive rule on the potential inheritance of permissions from opposing roles, thus it can be used to achieve appropriate segregation of duties. For example, the same person should not be allowed to both create a login account for someone, and also be allowed to authorize the procedure. A subject may have multiple simultaneous sessions with different permissions.
28	RBAC Example Subject = user "joe“ Role = "editor“ Operation = "publish“ However, at the BBC we're using it to handle sophisticated authorisation for a CMS system which requires ACLs, so we need object matching too From the Wikipedia article on RBAC: "With the concepts of role hierarchy and constraints, one can control RBAC to create or simulate lattice-based access control (LBAC). Thus RBAC can be considered a superset of LBAC. I.e. RBAC + ACLs = LBAC To do this I extended the concept of permission to include within it a reference to an object, or matches against objects using regexps, globs or plugin method Object = "/home/recipes/*"
29	Code Examples - Create Authz / 1
30	Code Examples - Create Authz / 2
31	Code Examples - Create Authz / 3
32	Code Examples - Query Authz / 1
33	Code Examples - Query Authz / 2
34	Summary and Links Summary There’s a lot to it, evolving standards Choice of library depends on language, platform, whether it’s enterprise, any special requirements Authentication and Authorisation At the simplest, use roles Then look at a lattice More complex may require RBAC Links Slides at http://miltonkeynes.pm.org Sandhu, R., Ferraiolo, D.F. and Kuhn, D.R. (July 2000). "The NIST Model for Role Based Access Control: Toward a Unified Standard" (PDF). 5th ACM Workshop Role-Based Access Control: 47-63. Thank you. Any Questions?
